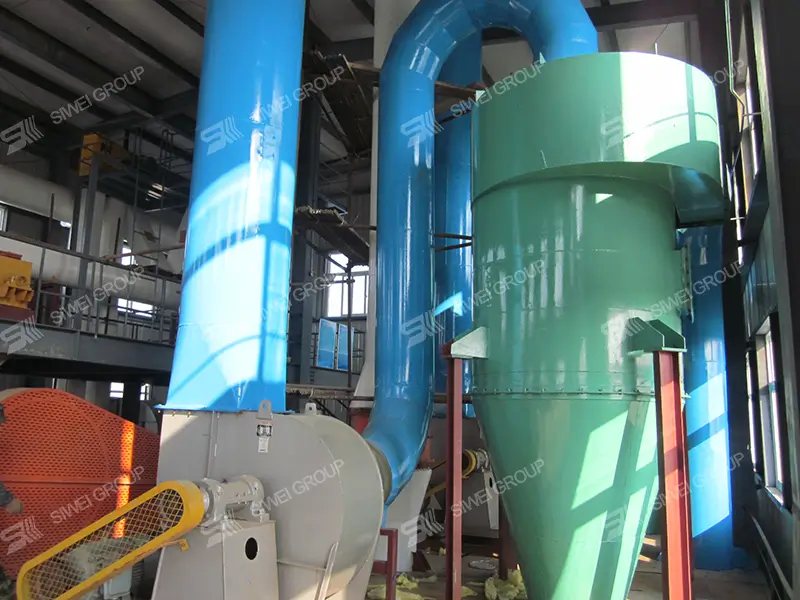

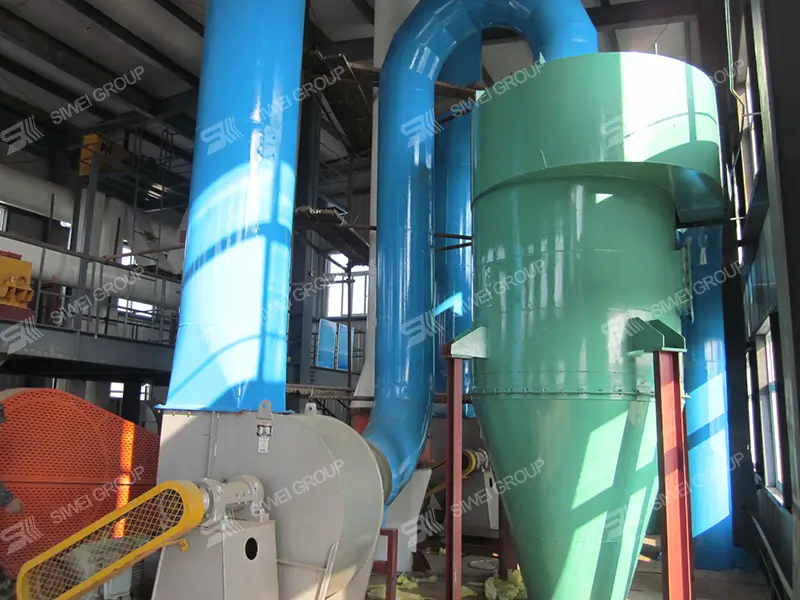

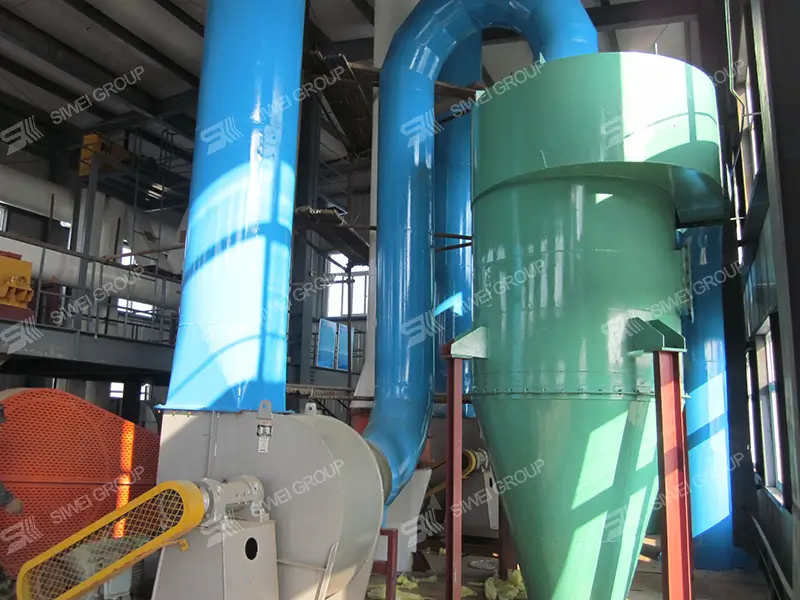

Cyclone dust collector is a type of dust collector, which is composed of two inner and outer cylinders, a conical cylinder, an air inlet and an ash discharge port (discharge). The inner and outer cylinders and the ash discharge port are located on the same axis. After the air containing dust (material particles) enters tangentially along the air inlet on the upper part of the outer cylinder at a high speed, it rotates in a spiral shape at high speed from top to bottom between the inner and outer cylinders and at the cone. During the rotation, the dust particles are thrown to the inner wall of the outer cylinder under the action of large centrifugal force, and gradually lose speed due to collision and friction with the wall. Then, under the action of gravity, they fall along the cylinder wall to the cone part, and then from the bottom Ash discharge port. When the airflow approaches the lower end of the cone, due to the air-closing device installed at the outlet, the air cannot flow out from the bottom, starts to reverse and rise again and is then discharged through the inner cylinder.
1. Raw material: Soybean
2. Processing capacity: 6000TPD
3. Project address: Yanjiao Town, Sanhe City
4. Company name: Hopefull Grain & Oil Group
5. Project content: 6000TPD soybean dehulling, extrusion, meal crushing and pretreatment workshop
1. Raw material: Soybean
2. Processing capacity: 4000 TPD
3. Project address: Rizhao
4. Company name: Rizhao Linghai Protein Oil Co., Ltd.
5. Project content: 4000 TPD soybean dehulling, extrusion, meal crushing and pretreatment workshop
1. raw materials: soybean
2. processing capacity: 5000t/d
3. project address: Guangzhou
4. Company name: Dongling Grain & Oil Co., Ltd
5. project content: 5000t / d soybean peeling and puffing, meal crushing, pretreatment plant
Leaching engineering solutions (1)、raw materials: soybean (2)、processing capacity: 6000t / d (3)、project address:Sanhe City (4)、Company name: Hopefull Grain & Oil Group (5)、Project content: 6000t/d soybean extraction plant
