Hydraulic oil press

  • Both hot and cold pressing are available, simple operation, pure physical pressing, high oil yield;
  • The processing capacity of each batch of a single oil press: 8kg/batch-30kg/batch
Get a Quote Send E-mail

0086 19337188894

Products

  • Oilseeds pretreatment equipment

  • Oil extraction equipment

  • Oil refinery equipment

  • Oil Press Series

    • WE WILL CONTACT YOU WITHIN 24 HOURS

    Product Description

    The hydraulic oil press is a combination of traditional pressing technology and modern technology. It has a simple structure, low pressing temperature and simple operation. The roasted oilseed is directly added to the barrel to squeeze out the oil. The squeezed oil flows into the oil tank through the oil tank. The piston and the cake tray descend together to unload the cake. Hydraulic oil press is a purely physical press, does not destroy the commercial components of oil, is natural and pollution-free, and is deeply loved by everyone.

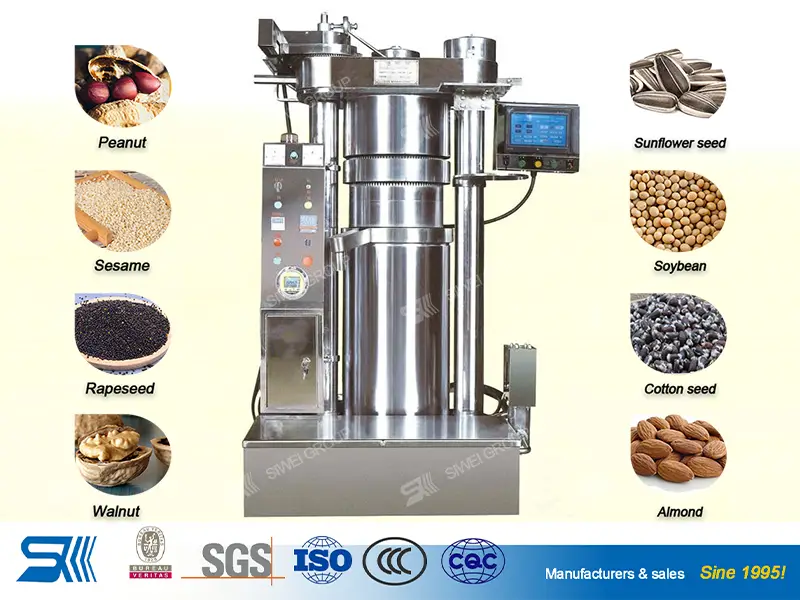

    Both hot and cold pressing are available: This machine can be used for cold pressing or hot pressing of a variety of oilseeds, such as sesame, peanuts, walnuts, almonds, linseed, rapeseed and other oilseeds.

    Good oil quality: Pure physical pressing, high oil yield, no temperature is generated during cold pressing and the organic components of the oil are not destroyed. It contains less impurities, high cake quality and has a wide range of applications.

    In large-scale operations, multiple oil presses are often used for joint pressing.

    Features of our hydraulic oil press

    • Fully automatic hydraulic oil press is mainly used to press oilseeds with high oil content, such as sesame, peanut, walnut, almond, flaxseed, rapeseed, etc.
    • Using advanced manufacturing technology, through continuous upgrading, it has more durable and stable performance than other products and can work continuously for 24 hours.
    • The whole machine adopts stainless steel with exquisite appearance and adopts automatic control system, hydraulic control system and temperature control system; you can choose whether you need these functions according to your actual conditions.
    • The machine occupies a small area, has low power, low noise and high efficiency. The machine can reach 60Mpa pressure, which is very important because greater pressure can provide higher oil yield.
    • This machine uses pure physical pressing, the oil is clear, more nutritious and healthier. The pure oil after simple filtration has a long-lasting fragrance.
    • We provide hydraulic oil presses with different degrees of automation and more oilseed processing capabilities. Our machines and customized services meet all your needs.

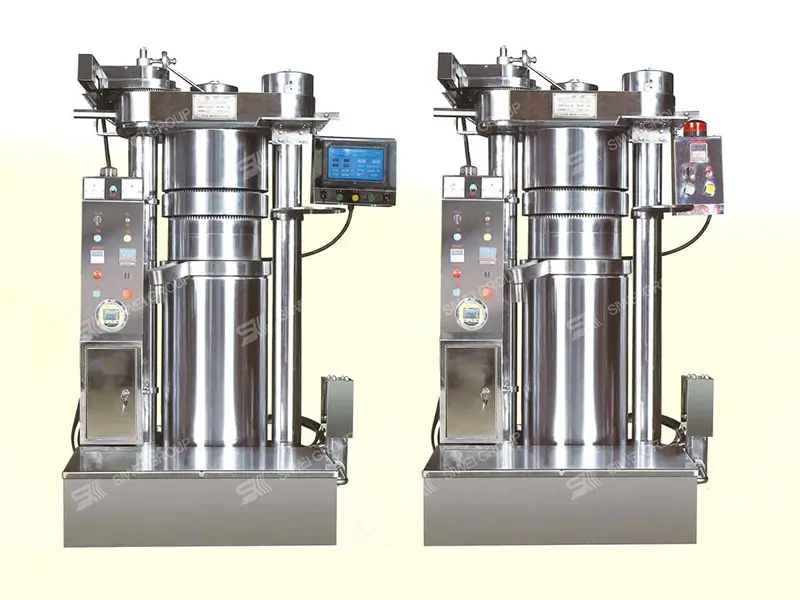

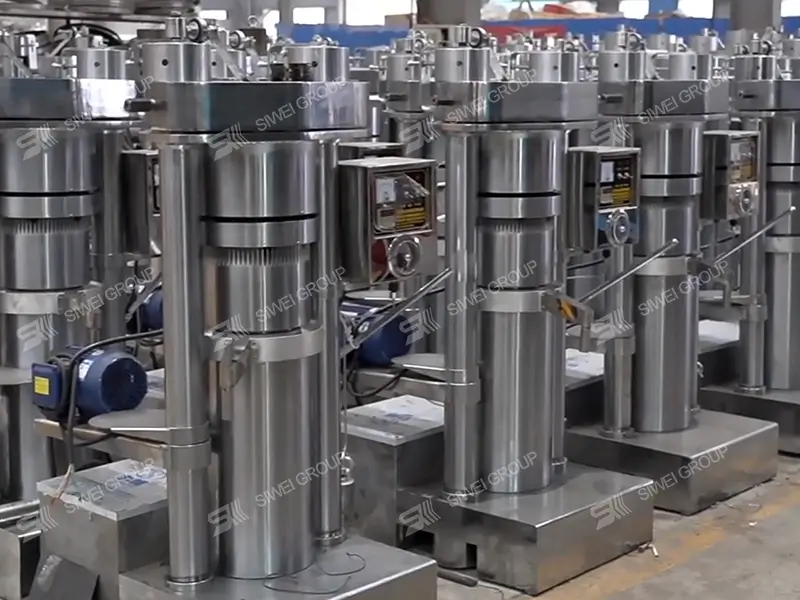

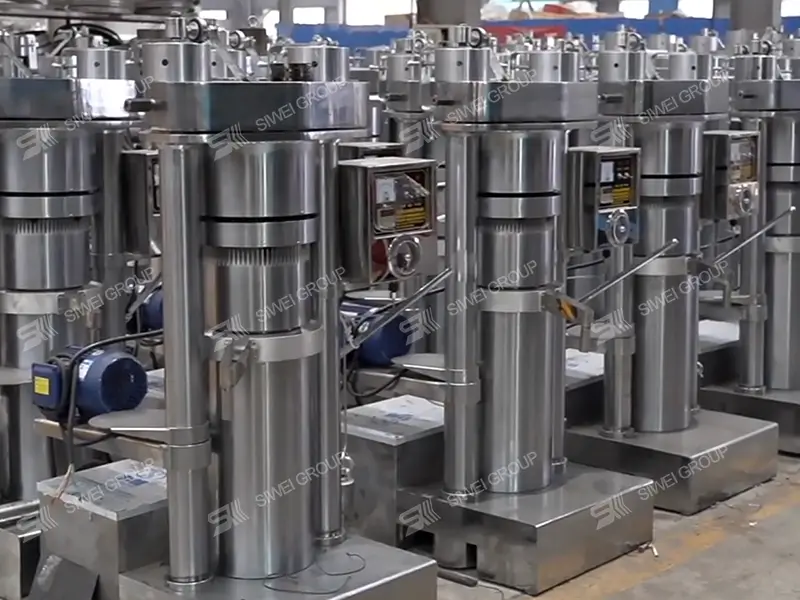

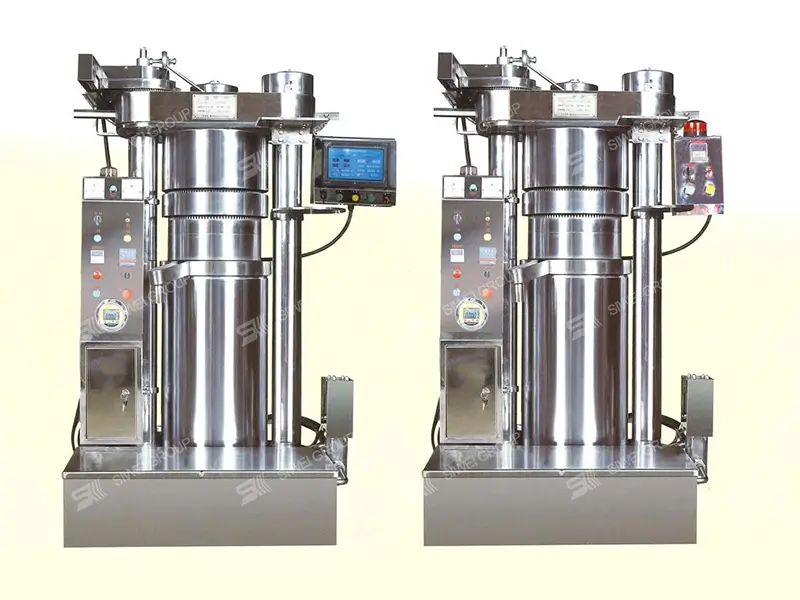

    Device Picture

    Specifications

    Equipment name Model Voltage Motor Power (kW) Processing capacity (kg/h) Overall dimensions after packaging (mm) Weight (T) Raw material for each batch (kg)
    6YY-300 fully automatic intelligent hydraulic oil press 6YY-300 (touch screen type) 380V/50HZ 3 120-150 1420× 1260× 2030 2.6 30
    6YY-270B fully automatic intelligent hydraulic oil press 6YY-270B (touch screen type) 380V/50HZ 2.2 80-100 1350 × 1210 × 1730 1.76 19-20
    6YY-270B (intelligent type) 380V/50HZ 2.2 80-100 1350 × 1210 × 1730 1.65 19-20
    6YY-270 fully automatic intelligent hydraulic oil press 6YY-270 (basic type) 380V/50HZ 2.2 60-75 1310 × 1170 × 1730 1.65 15
    6YY-270 (intelligent type) 380V/50HZ 2.2 60-75 1310 × 1170 × 1730 1.65 15
    6YY-270 (touch screen type) 380V/50HZ 2.2 60-75 1310 × 1170 × 1730 1.6 15
    6YY-220 hydraulic oil press (hand-operated type) 6YY-220 380V/50HZ 1.5 40-50 1270×1100×1740 1.35 10
    6YY-220B hydraulic oil press 6YY-220B 380V/50HZ 1.5 50-60 1290×1120× 1740 1.4 12
    6YY-190 hydraulic oil press 6YY-190 380V/50HZ 1.5 32-40 1200× 990× 1610 1.05 8
