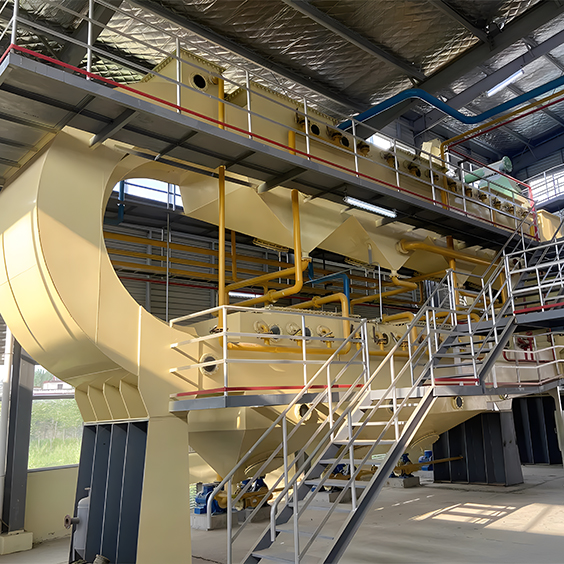

Loop type oil extractor

  • It is mainly used for solid-liquid extraction of vegetable oilsin vegetable oil factories (or extractionworkshop) of various scales.
  • Capacity: 30T/D-8000T/D.
  • Using raw materials: a variety of oilseeds, such as: soybean, rapeseed, cottonseed, sunflower seed, corn germ, peanut and etc..
Get a Quote Send E-mail

0086 19337188894

Products

  • Oilseeds pretreatment equipment

  • Oil extraction equipment

  • Oil refinery equipment

  • Oil Press Series

    • WE WILL CONTACT YOU WITHIN 24 HOURS

    Product description

    YJCP series rotocel extractor, YJCT series drag chain extractor, YJCH series loop type extractor, developed by our company are suitable for all sizes of vegetable oil plant (or extraction workshop) solid-liquid extraction of vegetable oil, adapted to the extraction of a variety of raw materials, such as soybeans, canola, cottonseed, sunflower, corn germ, peanuts, and other vegetable oilseeds and pre-pressed cake.

    Characteristics of loop type extractor

    • Loop typeextractor also use stainless steel grating, and the extractor itself has pre-extraction section, main extraction section and draining section. And in the extraction process, the oilseeds can be turned to increase the uniformity of extraction;
    • Unique spraying method ensures good extractioneffect;
    • Loop typeextractor has large capacity, uniform material layer, high utilisation rate of mixed oil, large concentration increment, fast spray penetration, fast draining, and low solubility of wet meal.

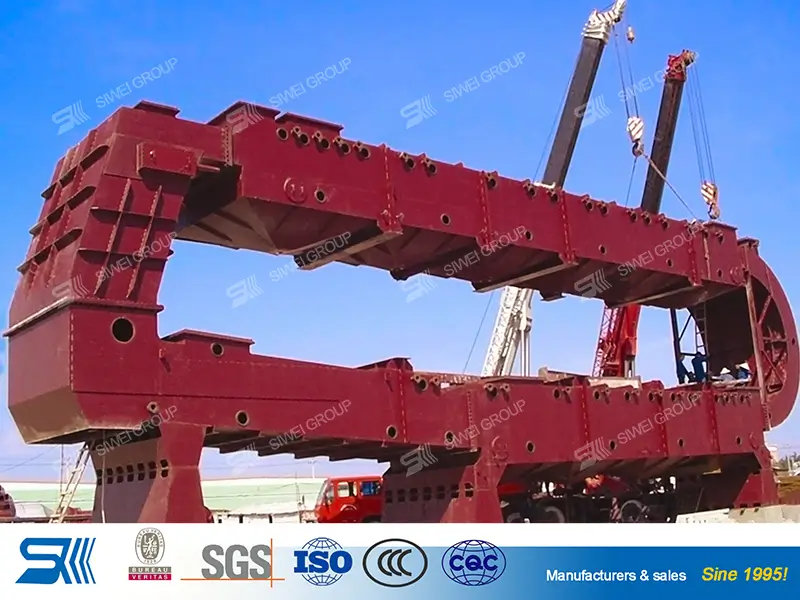

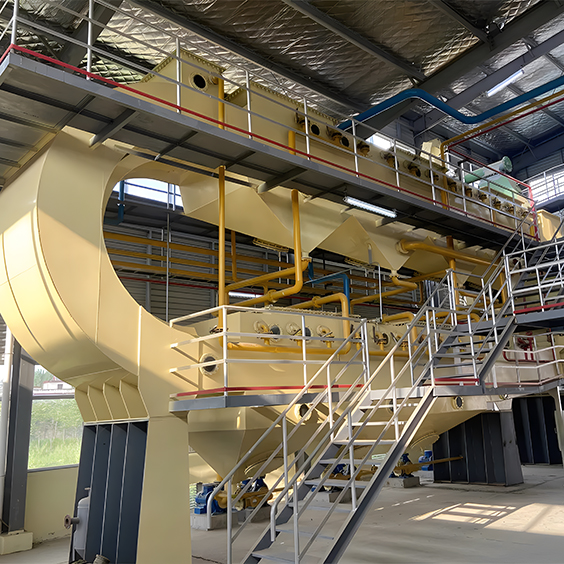

    Device Picture

    Loop type extractor parameters

    Device name Model Capacity Power (kw) Main application Note
    Loop type extractor YJCH6000 6000t/d 37 For various oil extraction Especially suitable for soybeans and other oils with good permeability, simple structure, smooth operation, can be large-scale.
    YJCH5000 5000t/d 30
    YJCH4000 4000t/d 22
    YJCH3000 3000t/d 18.5
    YJCH2000 2000t/d 15
