Valve plate stripping tower

  • Performance: Valve plate stripping towerstructure, energy saving, low residual solubility, more stable.
  • Raw material capacity: 100T / D-8000T / D.
  • Reduce steam energy consumption, the steam saving per tonne of oilseed is about 4kg and 50-20ppm of soybean residual solvent.
Get a Quote Send E-mail

0086 19337188894

Products

  • Oilseeds pretreatment equipment

  • Oil extraction equipment

  • Oil refinery equipment

  • Oil Press Series

    • WE WILL CONTACT YOU WITHIN 24 HOURS

    Description

    Stripping tower is one of the important equipments for the crude oil solvent recovery system in extraction workshop. YQTJ series of new type of fixed valve plate structure stripping tower developed by our company has the advantages of improving the quality of stripping crude oil, reducing the residual solvent of stripping crude oil and saving steam.

    Valve plate vapour stripping tower feature

    • Adopting new tower disc structure, effectively reducing the residual solvent rate of crude oil below 50ppm or even lower.
    • Improve the steam-liquid contact interface, reduce steam energy consumption, per tonne of oilseed to save steam is about 3kg.
    • Extremely high mechanical stability and no moving parts to avoid wear.
    • Excellent anti-clogging properties.
    • Cleaning hole in each layer, easy to observe and maintain.
    • The size of the equipment is small, with a small footprint and easy to arrange.

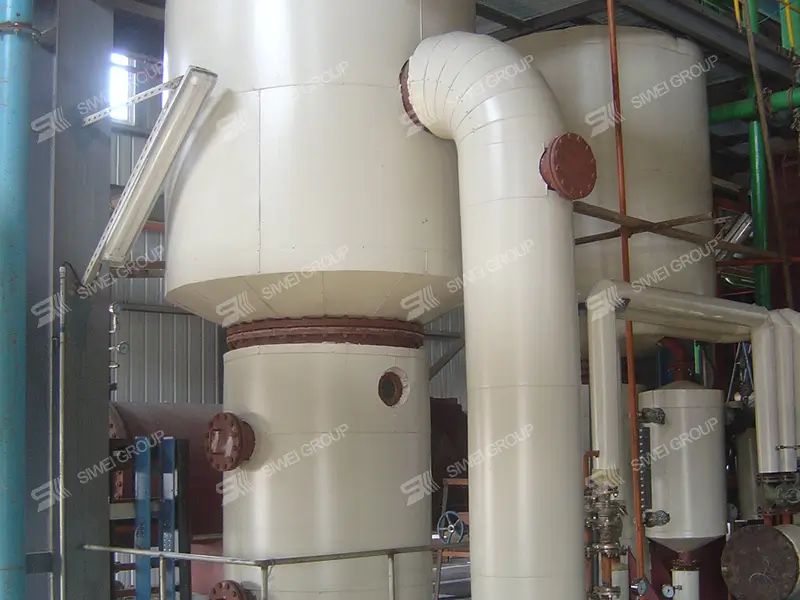

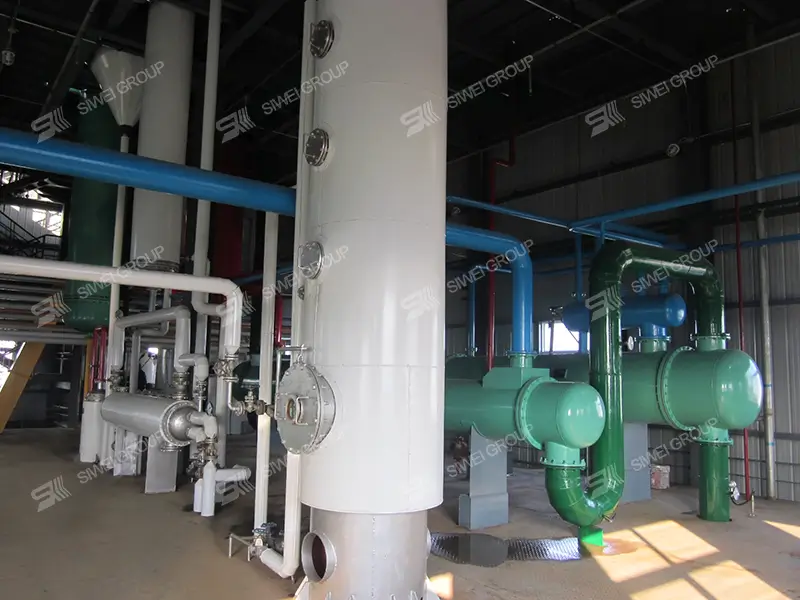

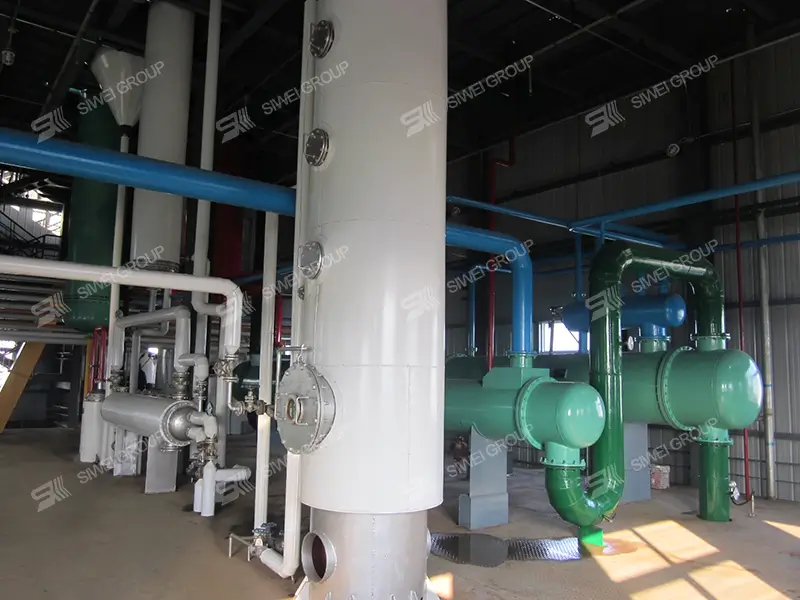

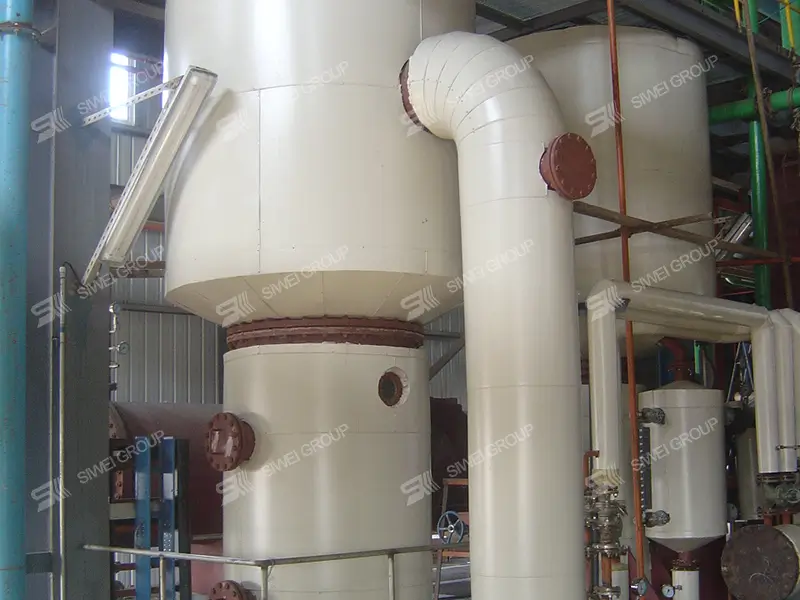

    Device Picture

    Main specifications & parameters

    N. Model Cylinder diameter (mm) Capacity (TPD) Steam consumption (normal) kg/h
    1 YQTJ500 500 500 108
    2 YQTJ600 660 1000 192
    3 YQTJ800 800 1500 245
    4 YQTJ900 900 2000 301
    5 YQTJ1100 1100 3000 573
    6 YQTJ1200 1200 4000 758
    7 YQTJ1300 1300 5000 951
    8 YQTJ1400 1400 6000 1144
    9 YQTJ1500 1500 7000 1335
    10 YQTJ1600 1500 8000 1526
