YRHW type horizontal softening kettle

  • Mainly used for softening and conditioning of oilseeds such as soybeans and rapeseed to facilitate subsequent processing.
  • Processing capacity: 10T/D to 1000T/D.
  • Temperature: The temperature after treatment is 60℃ to 70℃.
Get a Quote Send E-mail

0086 19337188894

Products

  • Oilseeds pretreatment equipment

  • Oil extraction equipment

  • Oil refinery equipment

  • Oil Press Series

    • WE WILL CONTACT YOU WITHIN 24 HOURS

    Product Description

    The YRHW horizontal softening kettle is mainly used to soften raw materials, improve the plasticity of raw materials and make the flakes from the flaking mill thin and not broken, thereby improving the effects of cooking, pressing and extraction.

    Main feature

    • The rotation of the cylinder makes the raw materials turn more evenly without dead ends, and the raw materials soften evenly and thoroughly.
    • Small power and low steam consumption.
    • The equipment has long service life, low failure rate and low maintenance costs.
    • According to the variety and properties of the raw materials, the softening time of the raw materials in the kettle can be flexibly adjusted.
    • Small footprint, saving investment (saving workshop space).
    • While softening high moisture raw materials, it can also soften and remove moisture from the raw materials.

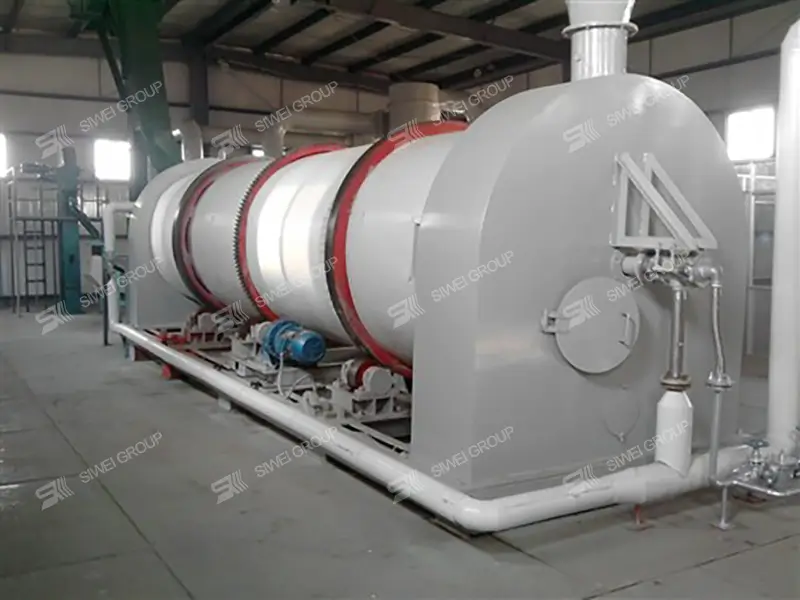

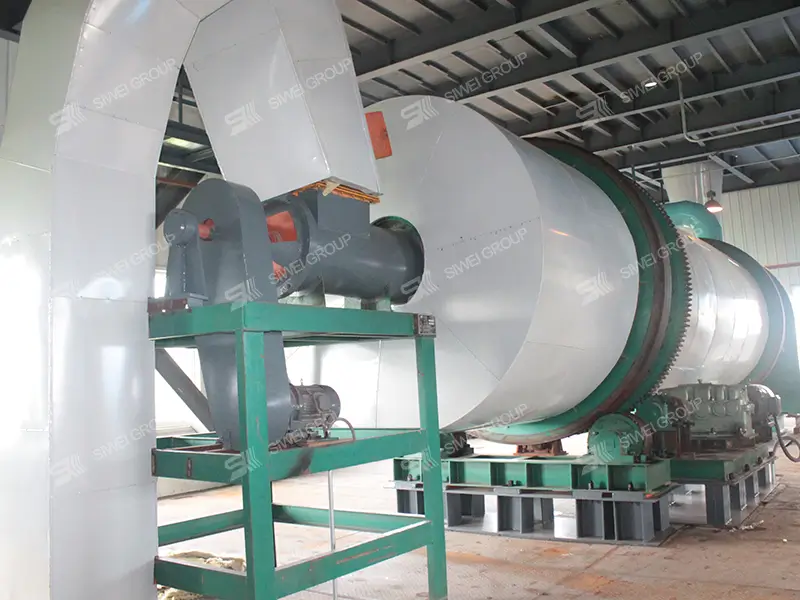

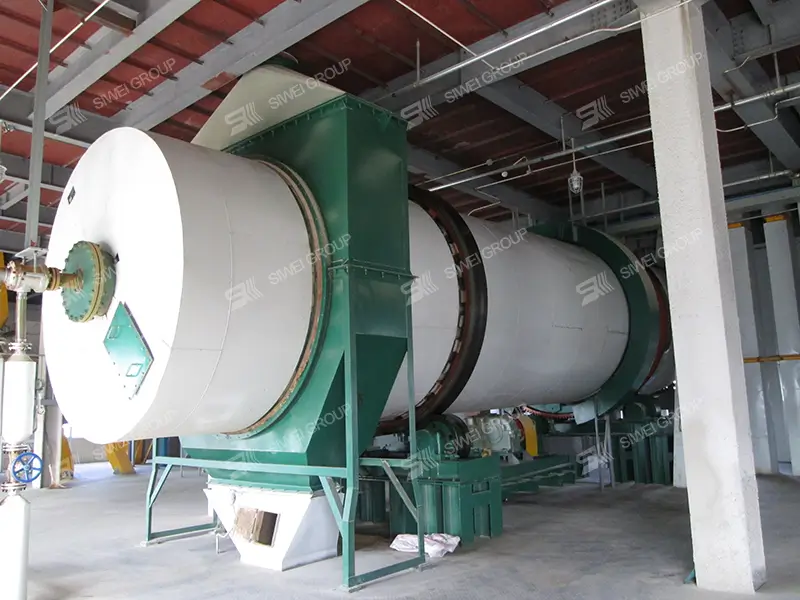

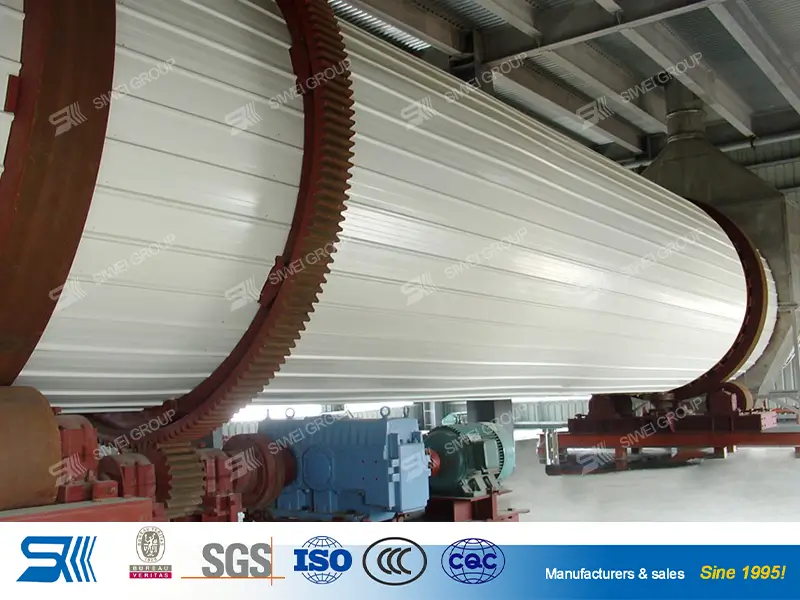

    Device Picture

    Main specifications & parameters

    Specification and model YRHW120A YRHW120B YRHW140A YRHW140B YRHW160A YRHW160B YRHW180A YRHW180B
    Processing capacity (T/D) 50 80 100 150 200 250 300 350

    Steam pressure MPa 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
    The speed of the cylinder (rpm) 1～4 1～4 1～4 1～4 1～4 1～4 1～3 1～3
    Dimension 4480×1900×2210 6480×1900×2210 5480×2100×2413 7480×2100×2413 6480×2260×2570 7480×2260×2570 7480×2460×2833 8480×2460×2833
    Specification and model YRHW200A YRHW200B YRHW220A YRHW220B YRHW240A YRHW240B YRHW260A YRHW260B
    Processing capacity (T/D) 400 450 500 600 700 800 900 1000
    Steam pressure MPa 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
    The speed of the cylinder (rpm) 1～3 1～3 1～3 1～3 1～2 1～2 1～2 1～2
    Dimension 8480×2660×3070 9480×2660×3070 8480×2860×3386 9480×2860×3386 9480×3060×3650 10480×3060×3650 10480×3260×3980 11480×3260×3980
